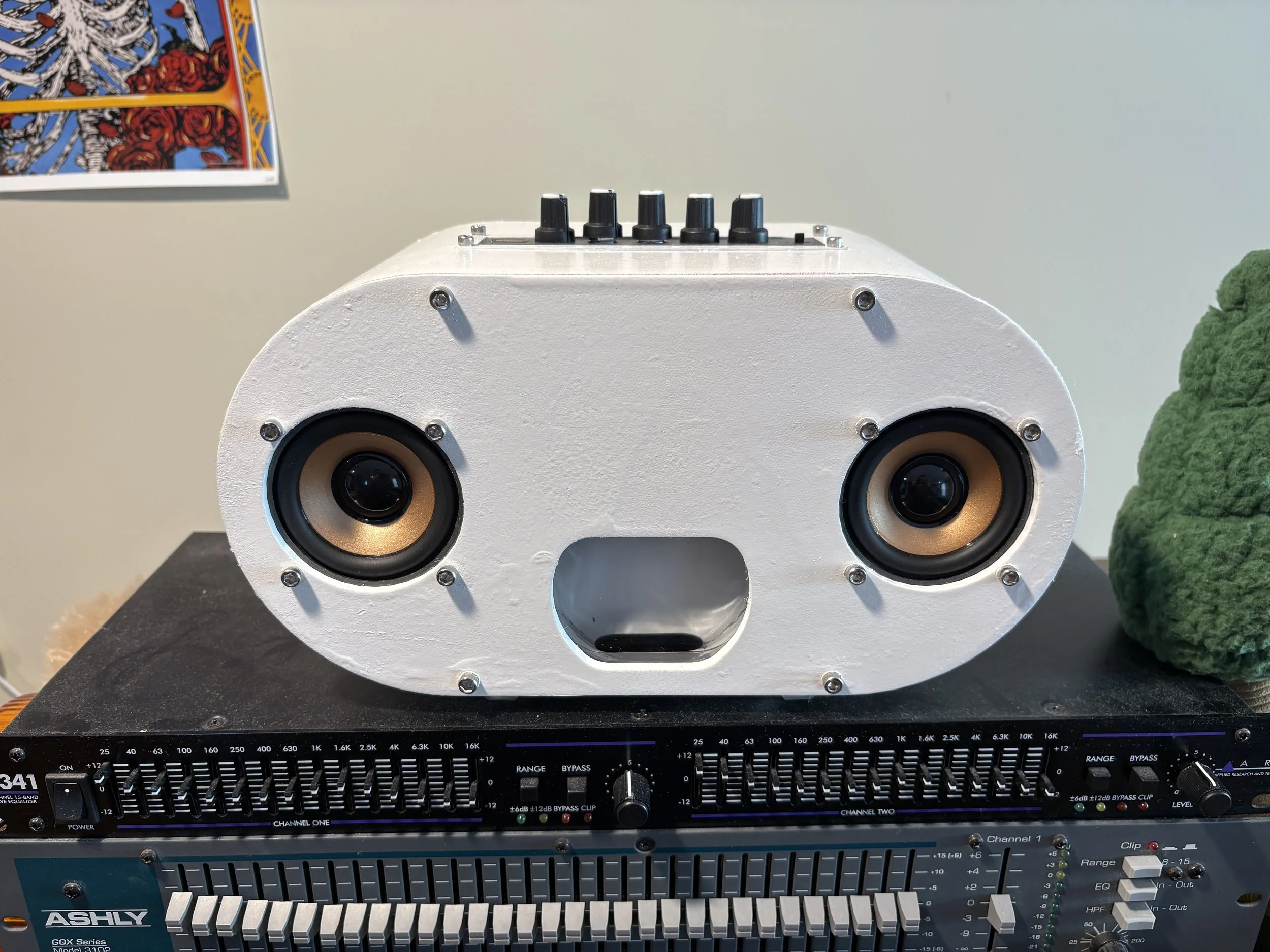

Designed and built a low-cost ferrofluid visualization speaker system that provides real-time, high-accuracy audio visualization without latency. The project focused on delivering a premium visualization experience at a fraction of the cost of existing high-end products.

Key Contributions

• Designed and integrated a combined audio and visualization system, including speaker drivers, amplifier, electromagnet, and ferrofluid display

• Developed a direct-drive visualization approach, connecting the electromagnet to the subwoofer output to eliminate latency from signal processing

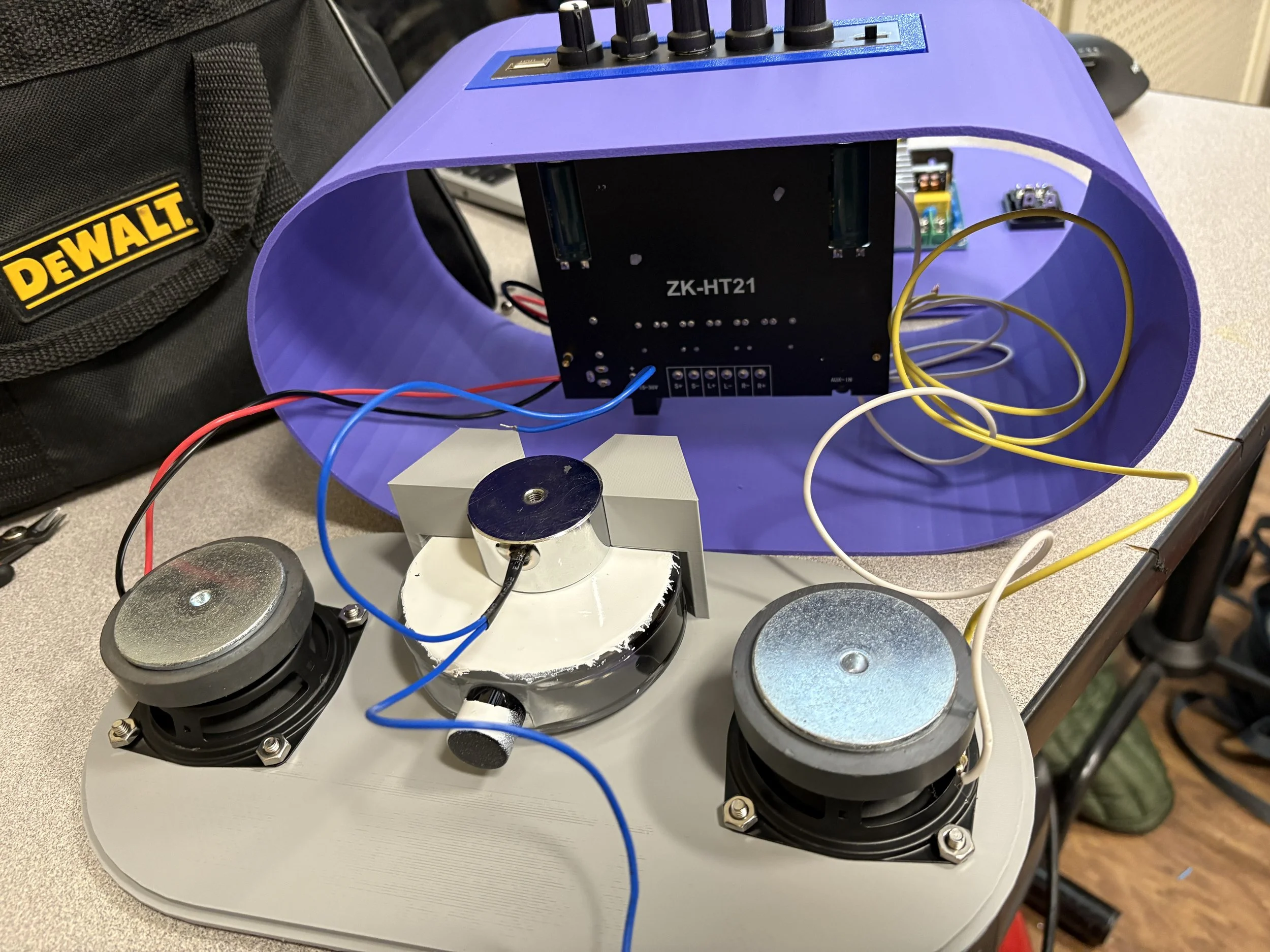

• Modeled and fabricated a 3D-printed enclosure optimized for acoustic performance, thermal management, and ease of assembly

• Defined system architecture through block diagrams and iterative prototyping, refining electrical and mechanical integration

• Evaluated market alternatives and engineered a solution to balance cost, performance, and accuracy

Technical Details

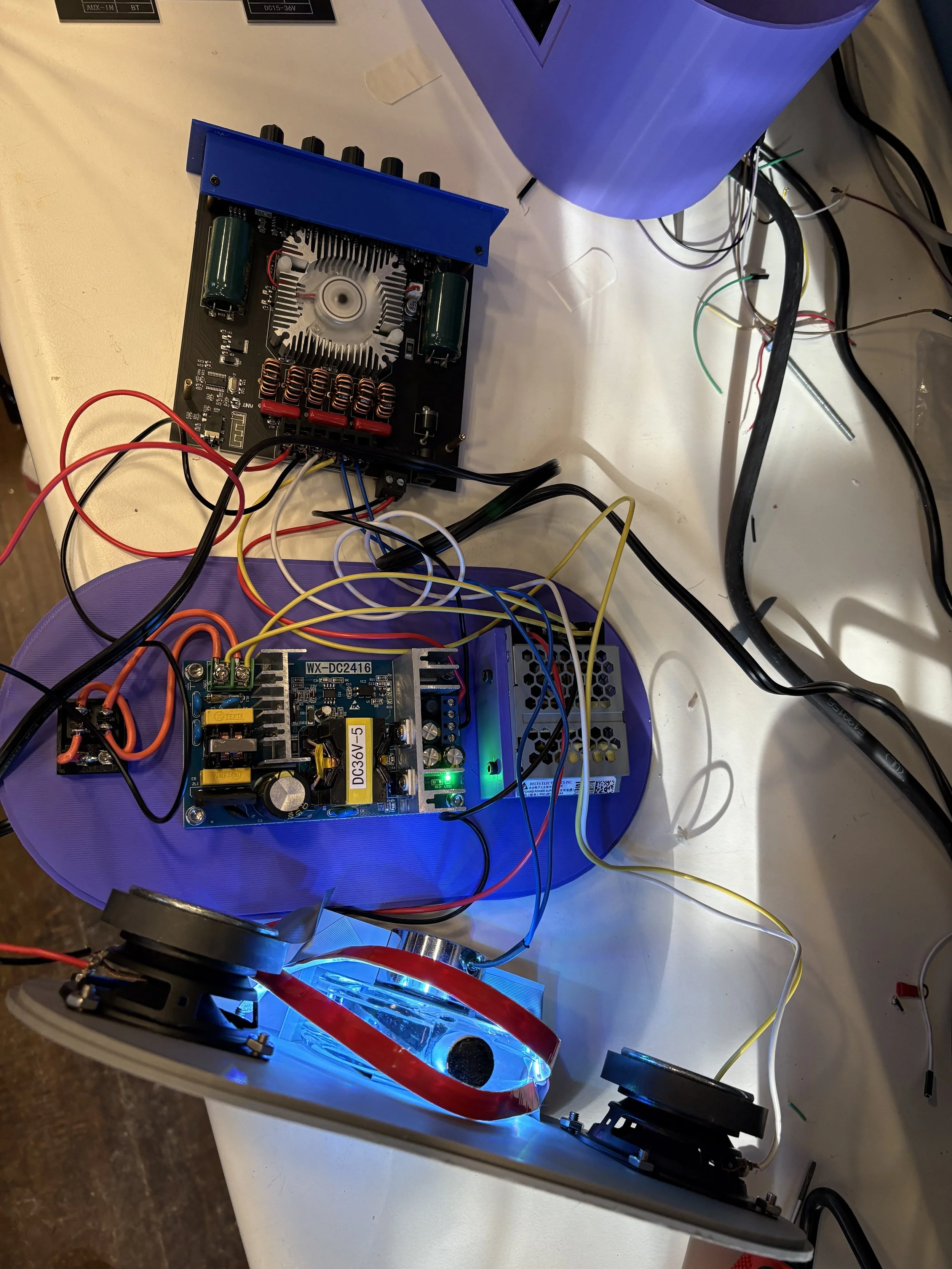

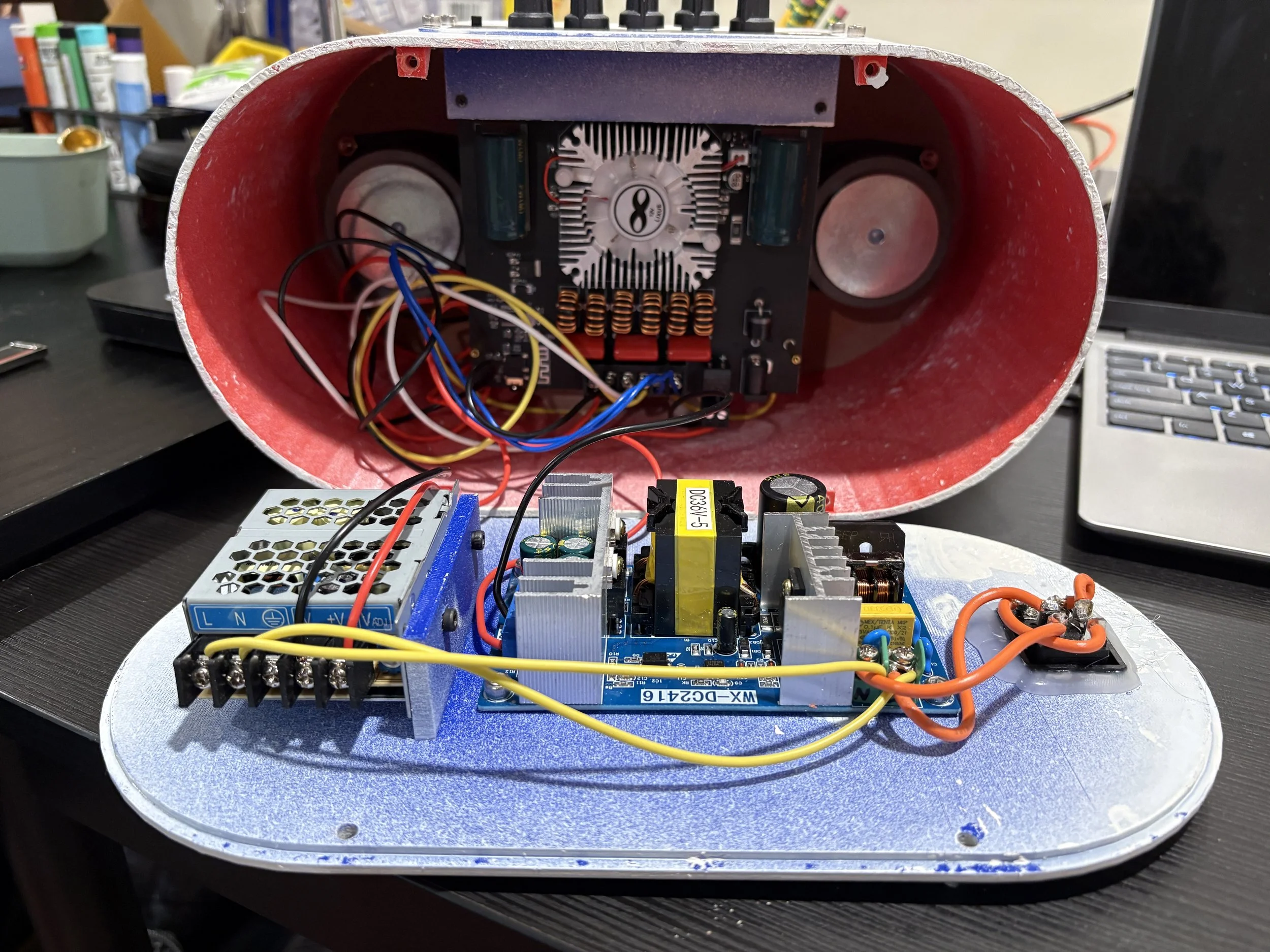

• Implemented a dual-power system (5V and 36V) to support lighting and audio amplification

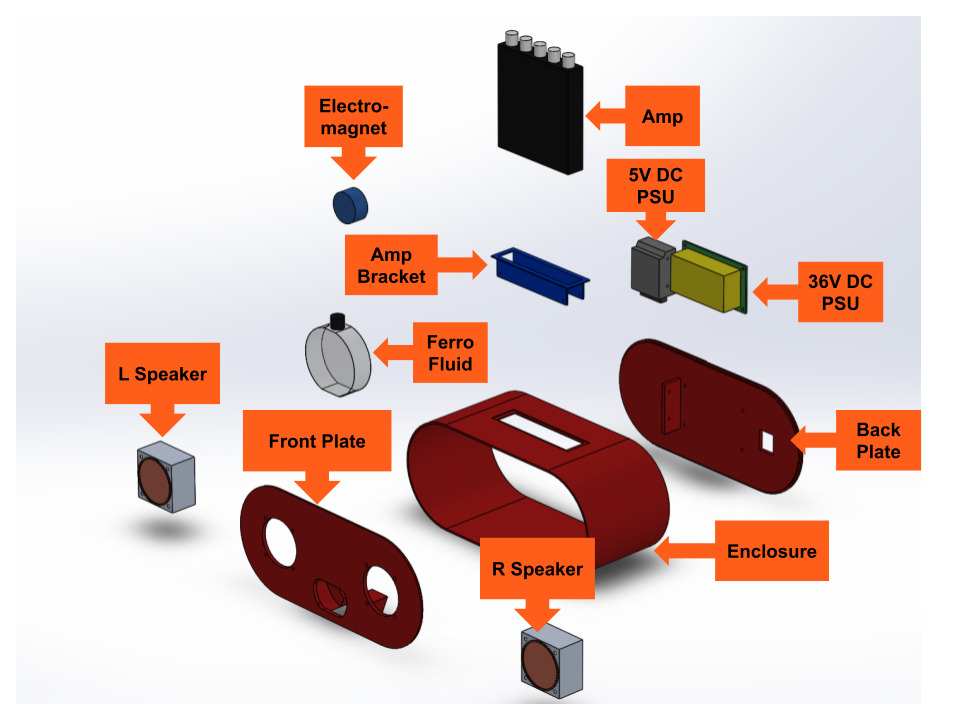

• Designed a three-part enclosure (front panel, shell, rear plate) to simplify assembly and component access

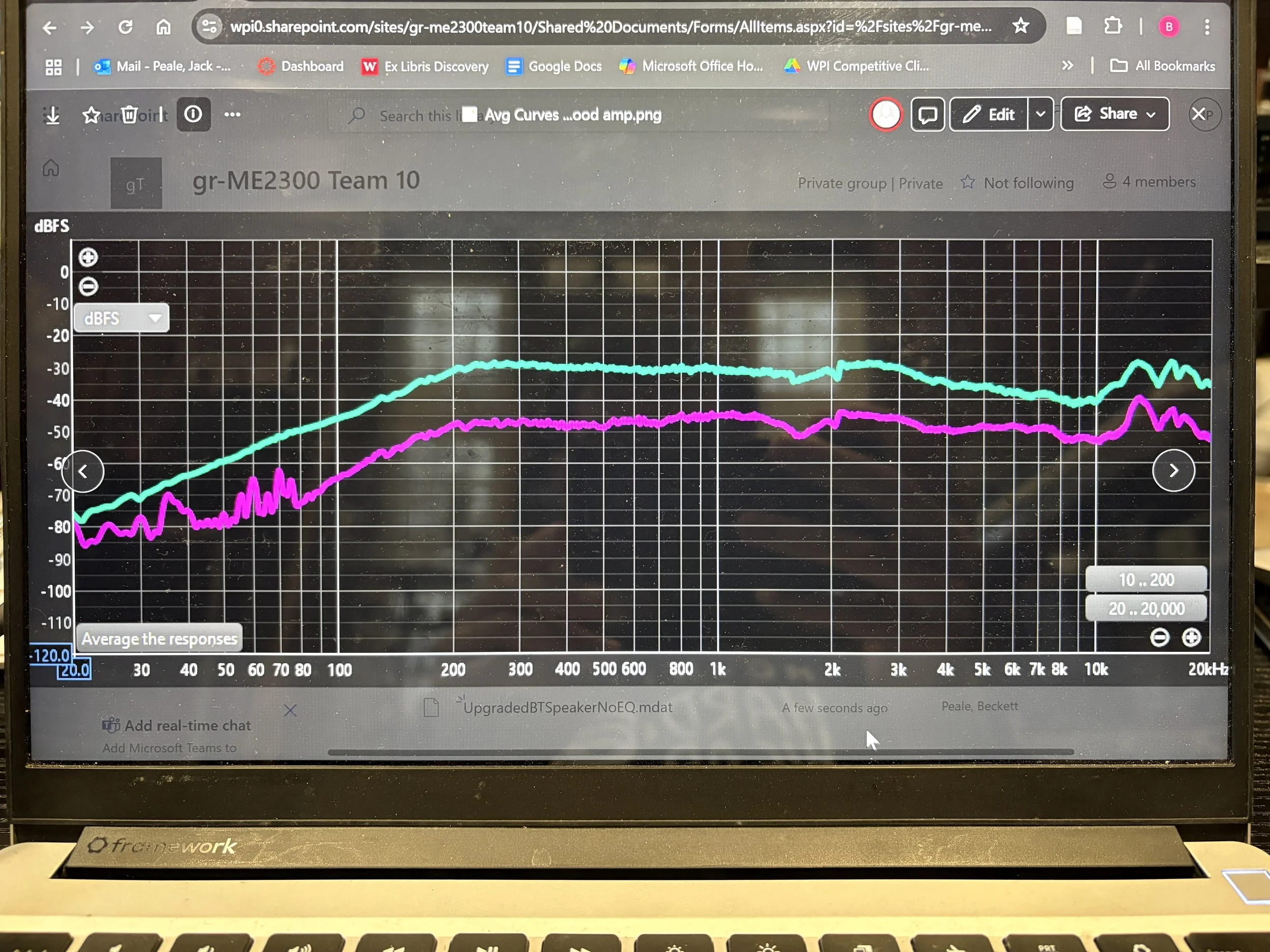

• Conducted acoustic testing (frequency sweep) to validate improvements in output volume and low-frequency clarity

• Analyzed thermal limitations of the electromagnet under continuous operation and identified future control system improvements (pulsed DC driver circuit)

• Utilized additive manufacturing to rapidly prototype and iterate on enclosure geometry

Results / Impact

• Achieved near-zero latency ferrofluid response through direct signal coupling

• Delivered a functional prototype at a cost of approximately $116, significantly below comparable high-end systems (~$900+)

• Improved audio performance with increased volume and enhanced bass clarity compared to baseline configurations

• Demonstrated a viable mid-market product opportunity between low-cost inaccurate devices and high-cost premium systems

• Identified clear pathways for scalability, including injection molding and integrated power systems for cost reduction

Tools & Skills

3D Printing, Mechanical Design, System Integration, Audio Systems, Electronics Integration, Prototyping, Design Tradeoff Analysis, Testing & Validation
